Product description: Tunnel type hank yarn dryer
INQUIRY

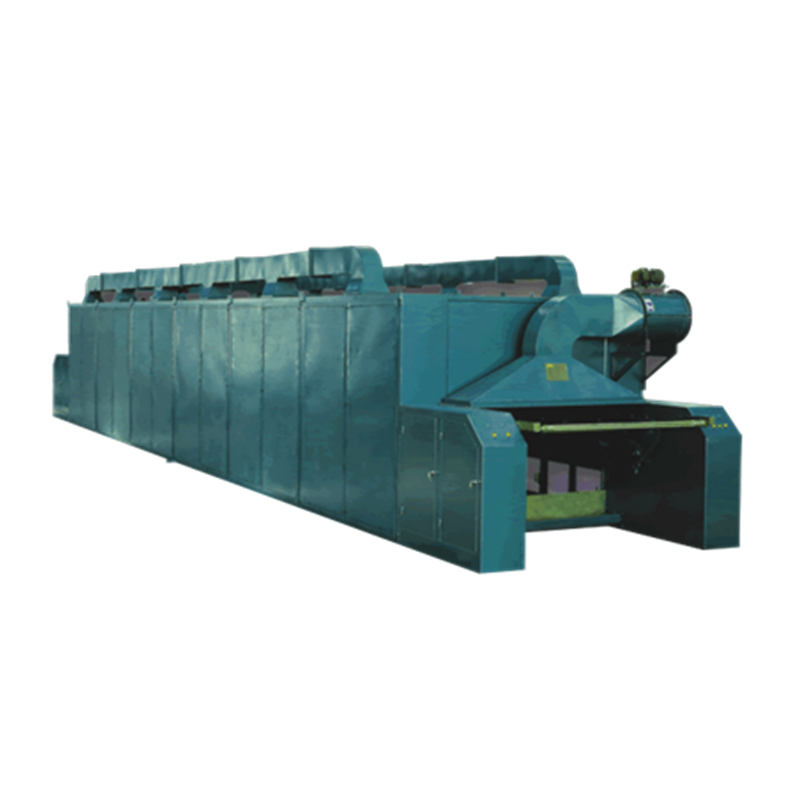

DC Tunnel type Hank Yarn Dryer

Application

The machine is used for the dryness of wool, acrylic fibers and cotton yarn after wet processing. There are different specifications from 3 barns to 8 barns. It is most suitable for drying hank yarns of woolen, cotton, synthetic and any other blended fibers. Wide range of conveyor velocity ratios and automatic temperature control system are equipped to process different fibre quality of the hank yarns to be worked. Good thermal efficiency, maximum drying capacity, safe and easy operation are your assurance.

Main Technical Parameters

1. Form: continuous tunnel type drying.

2. The height of the entry and exit of the conveyer bar：960mm.

3. The availability length of the conveyer bar: 1635mm.

4. The moving speed of the conveyer bar: 0.2~1.5m/min.

5. Steam working pressure: 3.5~4kg/cm².

6. The temperature of the chamber: 90℃~130℃, adjust automatically.

Specifications

型号 Model	烘干量 Nominal Capacity			总功率 Total Power	传热面积 Heat Transfer Area	外形尺寸 Dimensions				重量 Weight
	晴纶 Acrylic	羊毛 Wool	棉 Cotton	总功率 Total Power	传热面积 Heat Transfer Area	长 L	整机宽 W (machine)	高 H	烘房宽 W (chamber)	重量 Weight
	kg/hr	kg/hr	kg/hr	kw	m²	mm	mm	mm	mm	kg
DC-3	400	200	150	19.8	202	8710	2840	2900	2840	6500
DC-4	540	270	200	24.9	270	10670	2840	2900	2840	8000
DC-5	680	340	250	30.7	338	12620	2840	2900	2840	9500
DC-6	820	410	300	35.8	405	14520	2840	3200	2840	11000
DC-7	960	480	350	43.8	472	16520	2840	3200	2840	12500
DC-8	1100	550	400	48.9	540	17860	2840	3200	2840	14000
DC-9	1240	620	450	55.88	608	19780	2840	3200	2840	14000
