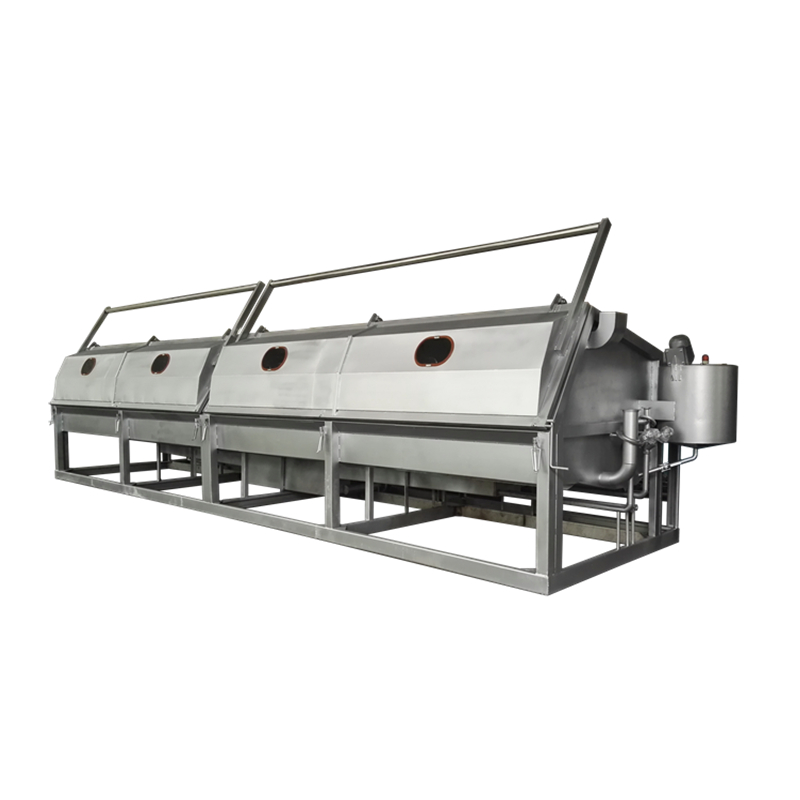

SH Spray type Hank Yarn Dyeing Machine
Application
It is suitable for bleaching, refining, dyeing, washing and post-treating various kinds of yarns, such as spindled shiny fiber, single spun yarn, rayon, mercerized cotton yarn, spun silk, pure silk, fancy yarn, cashmere, etc.
Technical Parameters
1. Maximum work temperature: 98℃
2. Temperature rising rate: about 5℃/min (according to the steam pressure 6kg/cm²)
3. Temperature Cooling rate: about 2℃/min (according to the cooling water pressure 3kg/cm²)
Specifications
|
型号 Model |
载量 Carrying capacity kg |
总功率 General power kw |
外型尺寸 Dimension |
重量 Weight kg |
||
|
L (mm) |
W (mm) |
H (mm) |
||||
|
HDS-1/2 |
3 |
1.1 |
1310 |
1950 |
2020 |
820 |
|
HDS-1 |
7 |
1.1 |
1540 |
1950 |
2020 |
1200 |
|
HDS-2 |
14 |
1.5 |
1570 |
2500 |
2020 |
1400 |
|
HDS-4 |
28 |
3 |
2130 |
2500 |
2020 |
1800 |
|
HDS-6 |
42 |
4 |
2580 |
2550 |
2020 |
2400 |
|
HDS-10 |
70 |
5.5 |
3740 |
2550 |
2020 |
3000 |
|
HDS-20 |
140 |
11 |
6740 |
2600 |
2120 |
4500 |
|
HDS-30 |
210 |
15 |
9700 |
2750 |
2220 |
5600 |
|
HDS-40 |
280 |
22 |
12850 |
2750 |
2220 |
6800 |
|
HDS-60 |
420 |
37 |
18810 |
2960 |
2320 |
11340 |
|
HDS-80 |
560 |
45 |
24900 |
2960 |
2320 |
13800 |
Specifications are subject to change without further notice.
