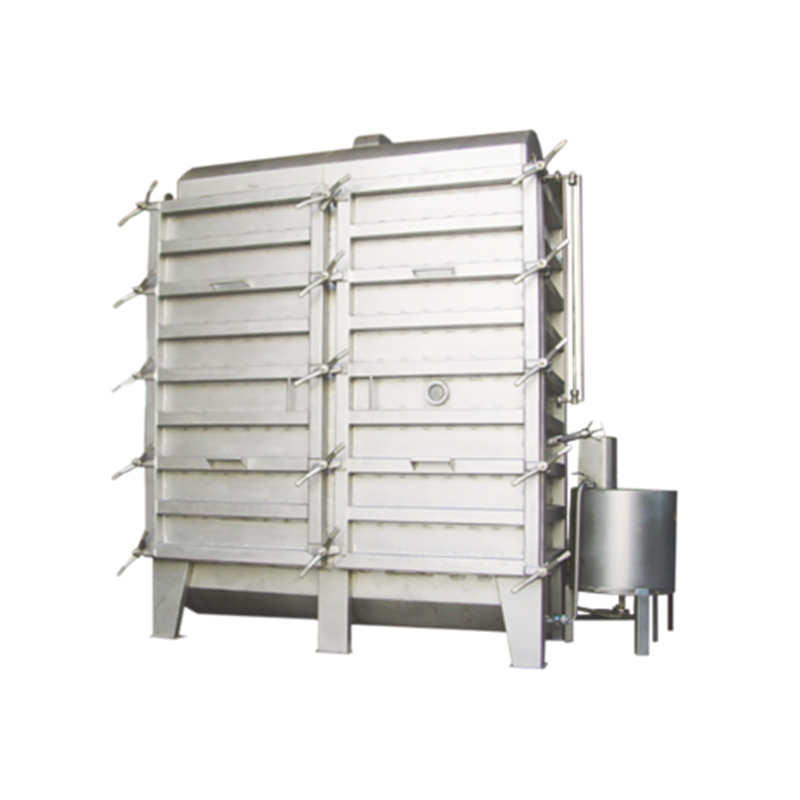

Y series Overflow hank yarn dyeing machine
Application
It is suitable for pre-processing and post-processing the cotton flax, wool, man-made hairs, acrylic and blending twisted yarns. Once packing can finish all processes of dyeing and finishing such as puffing, refining, bleaching, dyeing and pliability etc.
Technical Parameters
1. Max temperature:98℃
2. Temperature rising rate: 20℃-98℃ about 30min (according to the steam pressure 6kg/cm²)
3. Temperature Cooling rate: 98℃-80℃ about 15min (according to the cooling water pressure 3kg/cm²)
Specifications
|
型号 |
总功率 Power kw |
载量 Capacity kg |
标准型 Standard size |
三层型 Three-layer type |
|||||
|
L(mm) |
W(mm) |
H(mm) |
载量 Capacity: kg |
L(mm) |
W(mm) |
H(mm) |
|||
|
Y5 |
1.1 |
2.2 |
1235 |
820 |
1937 |
|
|
|
|
|
Y10 |
1.1 |
4.5 |
1235 |
900 |
1937 |
|
|
|
|
|
Y20 |
1.1 |
9 |
1400 |
1050 |
2080 |
|
|
|
|
|
Y30 |
2.25 |
14 |
1714 |
1125 |
2050 |
|
|
|
|
|
Y50 |
2.25 |
23 |
1714 |
1326 |
2050 |
|
|
|
|
|
Y100 |
2.95 |
45 |
2417 |
1357 |
2155 |
|
|
|
|
|
Y200 |
4.75 |
90 |
2830 |
1637 |
2210 |
|
|
|
|
|
Y300 |
5.5 |
140 |
2815 |
1590 |
3150 |
170 |
2815 |
1590 |
3410 |
|
Y400 |
7 |
185 |
2905 |
1880 |
3160 |
235 |
2905 |
1880 |
3420 |
|
Y600 |
9 |
275 |
3510 |
2178 |
3305 |
340 |
3510 |
2178 |
3565 |
|
Y800 |
12.5 |
360 |
3550 |
2490 |
3310 |
440 |
3550 |
2490 |
3570 |
|
Y1000 |
12.5 |
455 |
3775 |
2490 |
3310 |
550 |
3775 |
2490 |
3570 |
|
Y1200 |
13.5 |
545 |
3910 |
2760 |
3570 |
650 |
3910 |
2760 |
3830 |
