Fabric finishing machines

  • High efficiency tension-free dryer
High efficiency tension-free dryer

High efficiency tension-free dryer

  • Roller width: 1800-3200mm
  • Product description: High Efficiency Tension-Free Dryer
  • INQUIRY

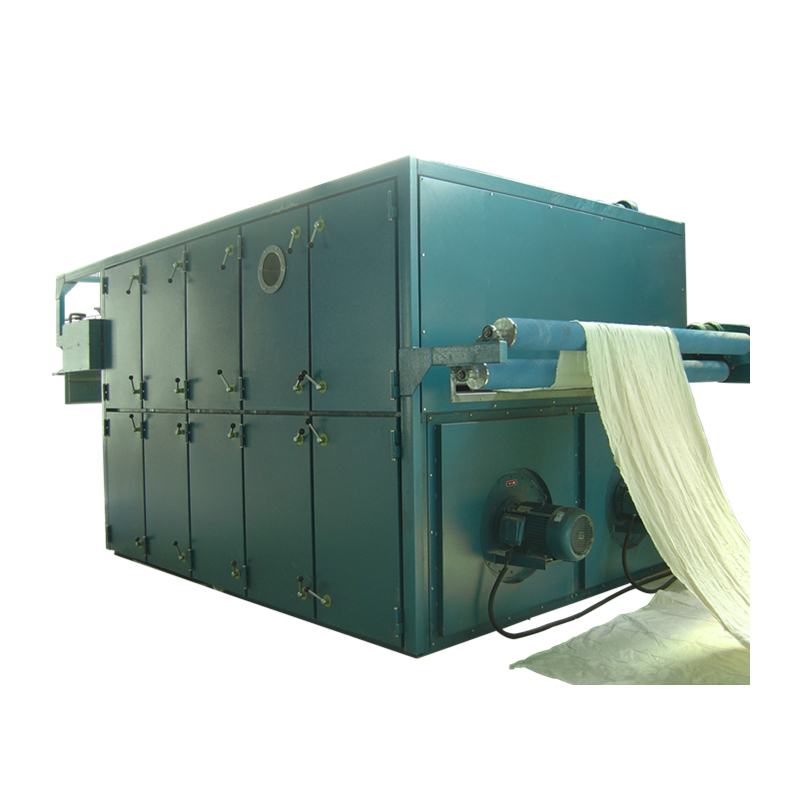

WMH974 High efficiency tension-free dryer


Application

It is used for continuous drying process of various kind of weaving product and knitting product, esp. suitable for heavy fabrics including long pile loop fabric, spiral pile loop fabric, plush, velvet, velure, corduroy and velvet pile towel, batch towel and floor tower etc., by which, the treated fabric has no fiber hardening with improved softness and fluffiness, thus being the best equipment for reproduction field to upgrade the product and increase economic benefit.


Technical Parameters

1. Roller width: 1800mm 2400mm 3200mm

2. Total power: 120 type 22kw, 180 type 34kw, 240 type 44kw, 320 type 52kw

3. Steam pressure: 0.6MPa

4. Evaporation capacity: 380Kg/h

5. Max. temperature: 140℃

6. Machine speed: 2-20m/min (Depend on moisture percentage and fabric thickness.)

7. Fabric content in the dryer: 15m

8. Delivered fabric plaited width: 0.5-1m
