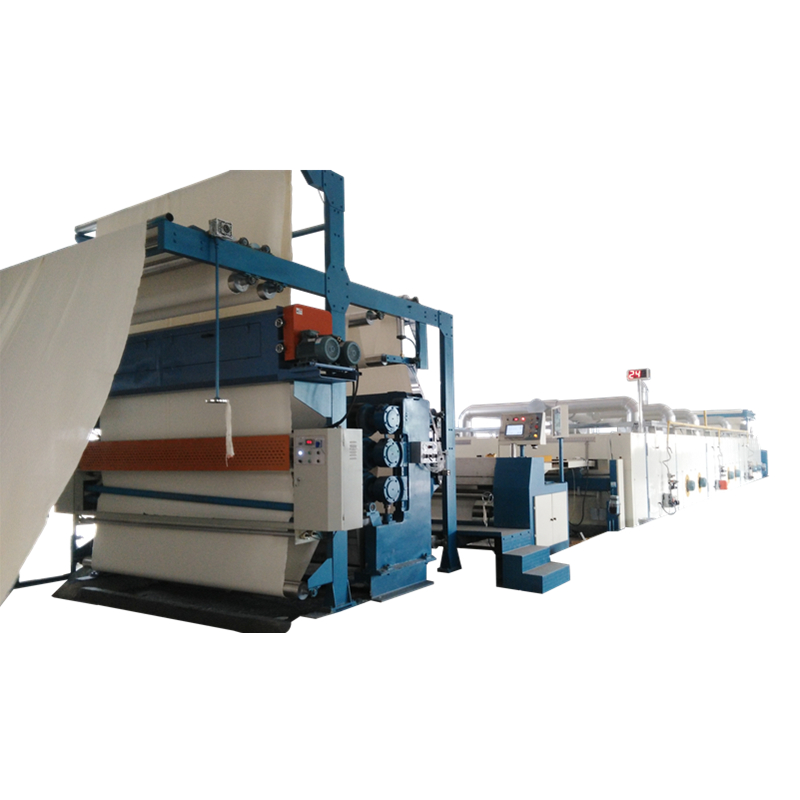

Stenter Frame

BM Stenter Frame

Application

This machine is mainly used for stentering, setting, finishing the cotton fabric, poly-cotton fabric, polyester fabric, elastic fabric after desizing, mercerizing.

Technical Parameters

1.  Machine nominal width: 1800~3600mm

2.  Design mechanical speed: 10~180m/min

3.  Heat source: natural gas / heat-transfer oil / electricity / steam

4.  Temperature: 60~220℃

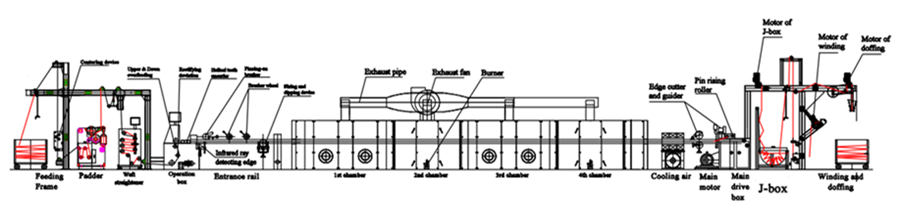

Process Flow

Open-width feeding fabric → fabric tensioning device → infrared centering device → photoelectric weft straightener → rectifying deviation, expanding, spreading device → screw thread spreading roller → front overfeeding device → edge detector → pinning on / clipping on → chambers setting → cold air cooling → pinning off / clipping off → back overfeeding → cold water roller for cooling → open-width swinging doffing / batching doffing.

The machine process can be customized according to the user’s technological requirements.
