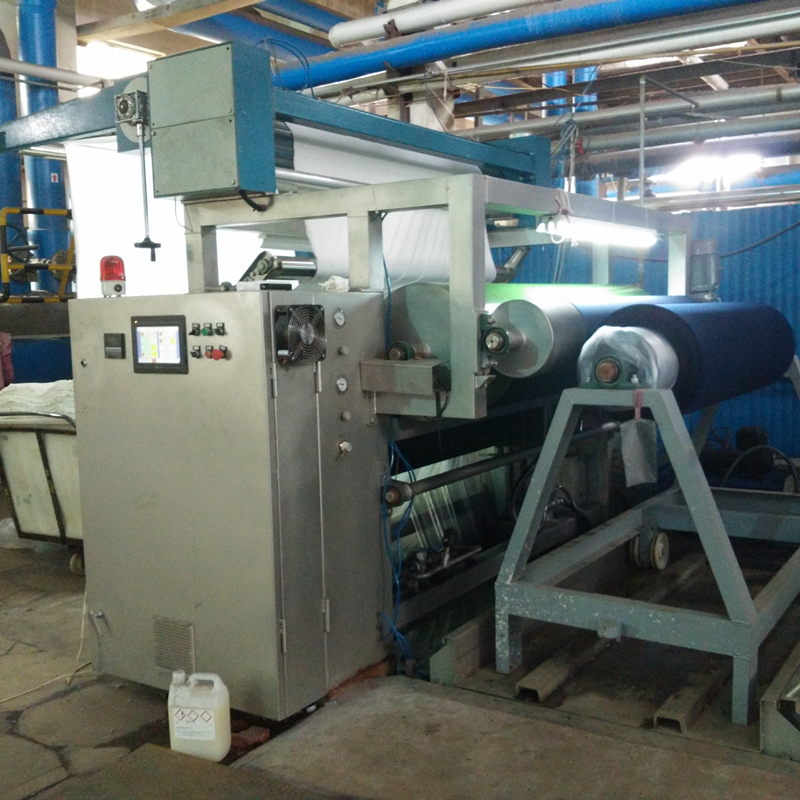

Cold Pad Batch dyeing machine for knitted fabric

Open Width Cold Pad Batch dyeing machine for knitted fabric

※ Equipment Use

Cold stack dyeing process for open width knitted fabric

※ Energy consumption

Production capacity: 0.6ton/hour

Water consumption: 1 ton water/ton fabric

※ Device Parameters

Design speed: 60m/min

Pressure of steam: 0.4MPa

Total power: 17KW

Main parts material: SUS304

Padder: Horizontal uniform padding

Overall dimension(220cm): L5000*W3630*H2600mm

※ Process introduction

Cold pad batch dyeing process is a kind of new dyeing process which is adapted to the size of the knitted fabric. The process of dyeing the knitted fabric through the mixture of dyestuff and alkali is carried out at natural temperature. At natural temperature, the dyestuff is rotated slowly to make the dye diffusion and fixation reaction, thus a new dyeing process is completed, which is adapted to the batch processing of the size of the knitted fabric. It belongs to the salt free dyeing, and the sewage is easy to handle.

※ Effect on fabric surface

The fabric is smooth, no creases, no sanding, clear lines and soft handle. It is especially suitable for improving the dimensional stability of elastic knitted fabrics.
