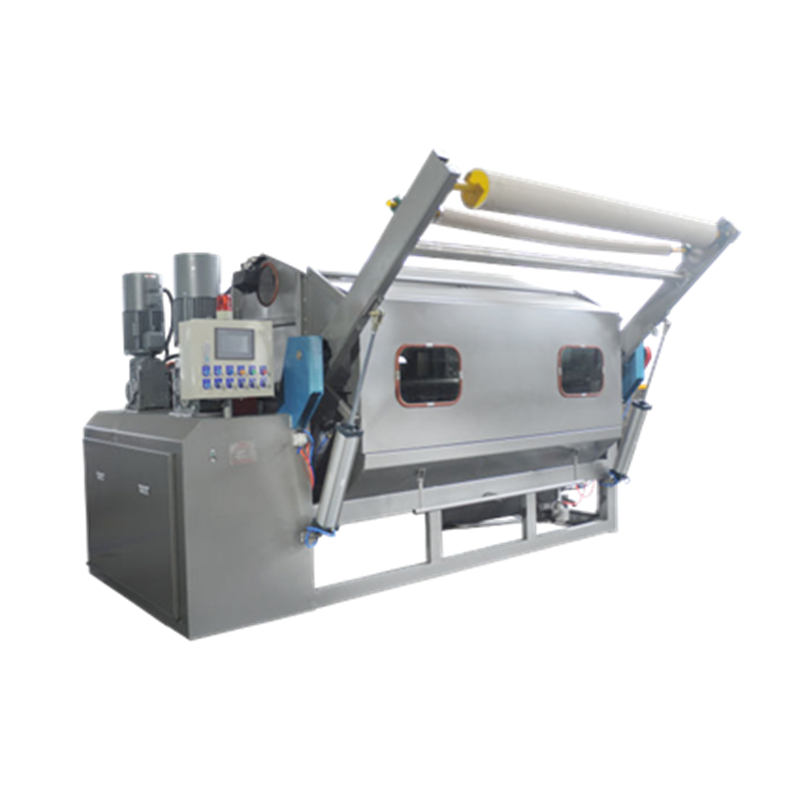

Atmospheric pressure jigger dyeing machine
Application
The atmospheric jig dyeing machine is suitable for various open width silk, cotton, nylon, artificial and synthetic fabrics in the processes of dyeing with distributed, sulfur, vat, direct, and reactive dyes, scouring, bleaching and cleansing at a constant rate and under a constant tension.
|
主辊直径 Diameter of main roller |
Φ245 - 325mm |
|
|
最大卷布直径 Max. diameter of cloth roll |
Φ1000 - 1200mm |
|
|
机械门幅 Main roller width |
1600 - 3600mm |
|
|
织物布幅 Max. working fabric width |
1400 - 3400mm |
|
|
织物速度 Adjustable fabric rate |
0-130m/min |
|
|
织物张力 Tension of fabrics |
0-60kg |
|
|
设计温度 Design temperature |
100℃ |
|
|
外形尺寸（L*W*H） Boundary dimension |
1000 |
(机械门幅+1650)*1900*2100 |
|
1200 |
(机械门幅+1650)*2100*2200 |
|
|
1400 |
(机械门幅+1850)*2800*2300 |
|
|
1500 |
(机械门幅+1850)*2900*2350 |
|
