Jet Dyeing Machine

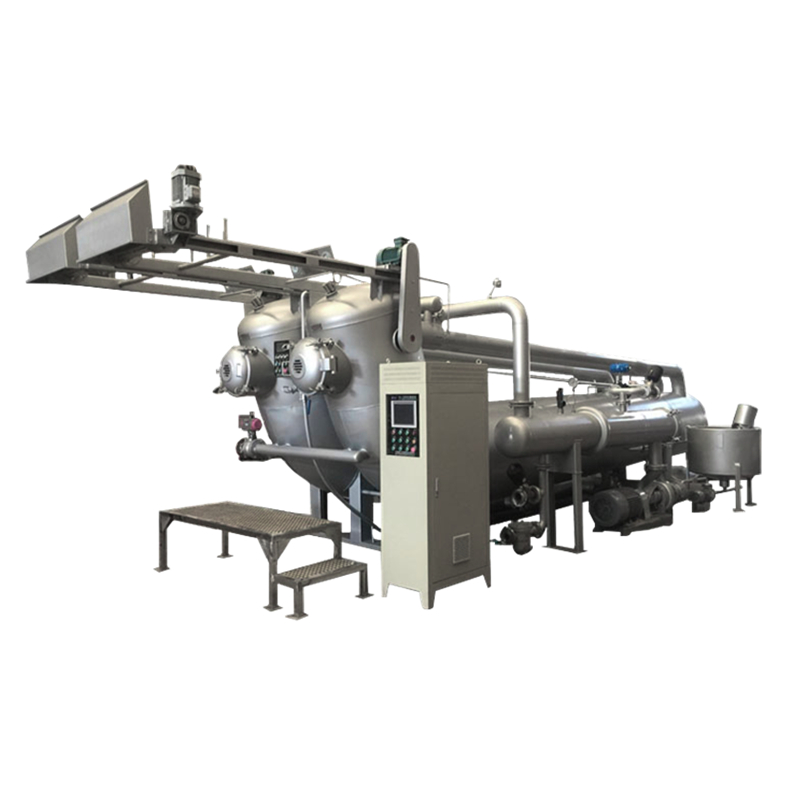

BTJ  High Temperature Jet Dyeing Machine

Application

Applicable fabrics: woven fabric, knitted fabric; thick and heavy fabric, thin and light fabric; natural fiber, synthetic fiber and blended fabrics; Suitable materials: polyester, cotton, viscose, wool, acrylic, nylon, tencel, rayon, modal, and blended fabrics.

Technical Parameters

1. Liquor Ratio: 1:7~12
2. Design Speed: 0-350m/min
3. Design Temperature: 140℃
4. Working Temperature: 135℃
5. Temperature heating rate: 5℃/min on average from 25℃ to 100℃, 2.5℃/min on average from 100℃ to 130℃ (Pressure of dry saturated vapor: 0.7Mpa)
6. Temperature cooling rate: 3℃/min on average from 130℃ to 100℃, 2℃/min on average from 100℃ to 85℃  (Cooling water pressure: 0.3Mpa, Temperature: 25℃)

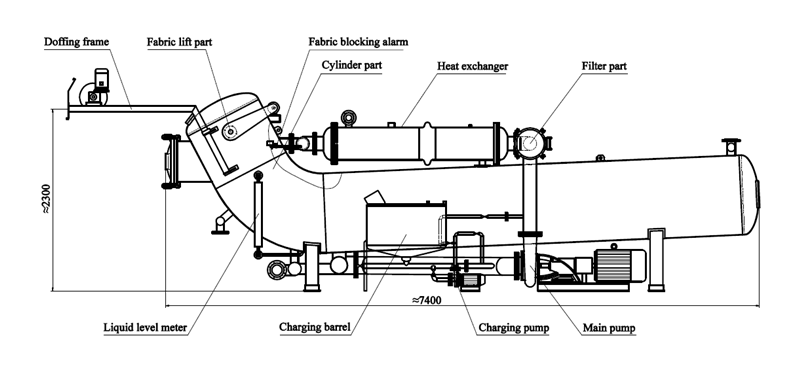

Specifications

Above dimensions are standard sizes, the machine can be properly lengthened according to customer’s request.

Specifications are subject to change without further notice.
