Fabric dyeing machines

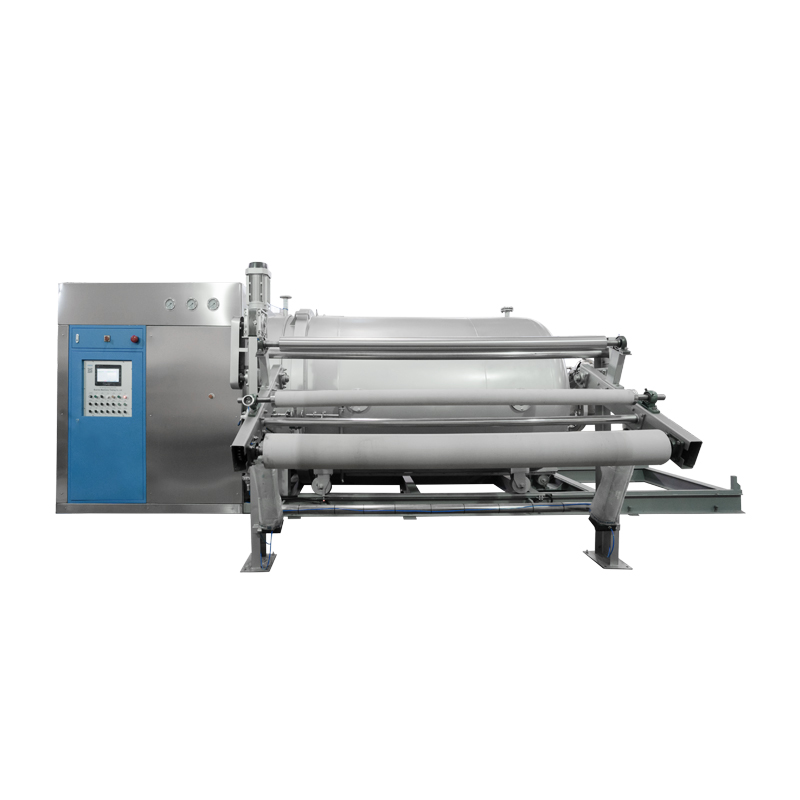

High temperature jigger dyeing machine

Max. working temperature: 135℃
Max. diameter of cloth roll: Φ800 - 1200mm
Main roller width: 1600 -3600mm
Max. working fabric width:1400 - 3400mm
Product description: High temperature jigger dyeing machine High temperature high pressure jig dyeing machine
INQUIRY

High temperature jigger dyeing machine

Application

This high temperature jigger is mainly for open with nylon, spandex, silk, cotton, polyester, flax and blended fabric in desizing, bleaching, scouring, dyeing, etc.

主辊直径 Diameter of main roller		Φ245 - 325mm
最大卷布直径 Max. diameter of cloth roll		Φ800 - 1200mm
机械门幅 Main roller width		1600 -3600mm
织物布幅 Max. working fabric width		1400 - 3400mm
织物速度 Adjustable fabric rate		0 -130m/min
织物张力 Tension of fabrics		0-60kg
最高工作温度 Max. working temperature		135℃
外形尺寸（LWH） Boundary dimension	800	(3400+机械门幅2)2100*2200
	1000	(3450+机械门幅2)2400*2500
	1200	(3500+机械门幅2)2700*2800
