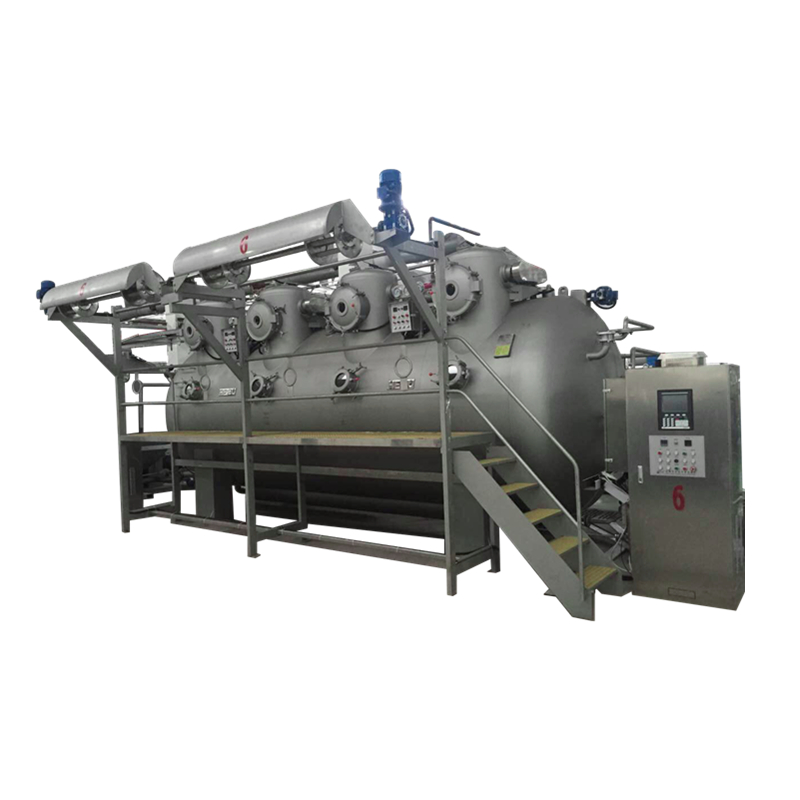

Low liquor ratio dyeing machine

Application

This machine is environmental uniform flow dyeing machine with low liquor ratio. It is suitable for dyeing, pre-treatment and post-treatment of natural fiber, synthetic fiber and blended knitted fabric or woven fabric.

Technical Parameters

1. Max. working temperature: 135℃

2. Max. working pressure: 0.3Mpa

3. Liquor ratio: 1:4.5~1:6

4. Max. capacity of each tube: 250kg

5. Linear speed of fabric: 70~350 m/min

Main Features

1. High quality dyeing: this machine can easily solves the disadvantages that other small bath ratio dyeing machine causes the crease problem in dyeing high density and chemical fiber fabric.

2. Built-in interactive stack system: the load capacity of the cloth is greater increased.

3. Adjustable Variable load storage slot：suitable for all kinds of thick and thin fabrics with high quality dyeing.

4. Innovative design of the dyeing nozzle: adjustable gap, easy to clean, stable performance.

5. Feeding back flow dilution system: to ensure that under the extremely low bath ratio, the pigment and dye liquor fully mix evenly, thereby reduce the dyeing process of Color mixed , color difference.

6. Full automation: advanced automation with high precision control, which ensures high reproducibility and quality of dyeing.
