Fabric dyeing machines

Overflow dyeing machine

Design temperature: 100℃
Working temperature: 98℃
Design speed: 0~300m/min
Product description: Normal temperature overflow dyeing machine
INQUIRY

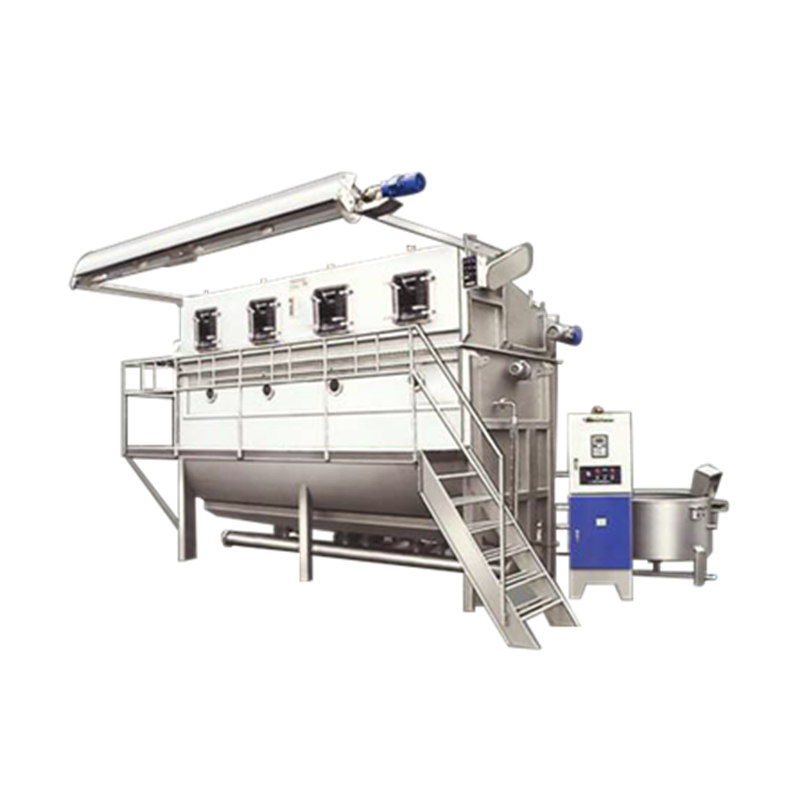

GM38 Overflow Dyeing Machine

Application

This machine is specially designed for various woven and knitted fabrics under normal pressure and maximum temperature of 98℃ by jet and overflow. Suitable for bleaching, dyeing, washing and other processes of thick, thin, natural or synthetic fibers and blended fabrics.

Technical Parameters

1. Liquor Ratio: 1:7~10

2. Design Speed: 0~300m/min

3. Design Temperature: 100℃

4. Working Temperature: 98℃

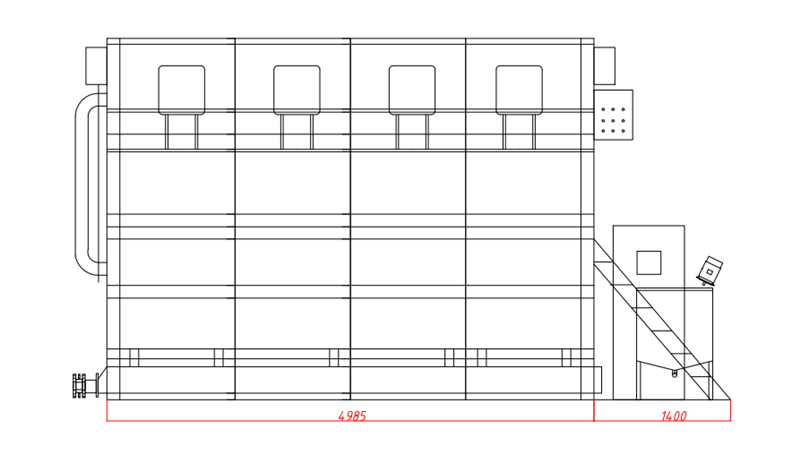

Specification

型号 Model	管数 Tube Qty.	载量 Capacity: kg	功率 Power: kw	外形尺寸(长宽高) Dimension (LWH)
GM38-1	1	200-250	8.8	4450×2685×3600
GM38-2	2	400-500	15	5930×3655×3600
GM38-4	4	800-1000	30	7930×3655×3600
GM38-6	6	1200-1500	52.5	9930×3655×3600
